Anonymous Simplex SMP & XFTP Servers setup

TLDR: you can host simplex SMP and XFTP servers anonymously, by making them onion-only. And you'll still be able to connect to regular users by using them because of simplex's 2 hop private routing mechanism

If you do not have SimpleX installed on the clientside please refer to this tutorial post

Only using your own onion-only simplex server doesn't isolate you.

A common misconception that people seem to have is that you wouldn't be able to communicate with regular simplex users that don't have Tor connectivity, when you're only using your own onion-only simplex servers. But that's not true, you're not even isolated when using onion-only servers. This mode of thinking comes the fact that traditional federated apps (like the fediverse) don't care about server-side anonymity. But, lucky for us, the official simplex servers also allow Tor connections in between simplex servers, which makes this whole setup possible.

In reality, thanks to Simplex's Private Routing protocol, (which is a 2 hop routing protocol), your trusted simplex server (which is onion-only) communicates with the other party's trusted simplex server, as long as they have Tor connectivity. And if the other peer is using the default Simplex Servers, which all have Tor connectivity, then they can still communicate to your own onion-only simplex server, which ensures that you're not isolated when you want to have a public, yet anonymous community like the one we have at Nowhere.

That's what we are going for in this tutorial. We're going to setup a simplex server that is onion-only, to protect the server-side anonymity, and we'll use our simplex client to only connect through our onion-only simplex server, and we'll create group chats with it so that we can have our own public, yet anonymous chatroom.

SimpleX Server Setup

It's important to note that in theory, it doesn't matter which SimpleX server you connect to, as all communications are end-to-end encrypted. When you connect via Tor, it further ensures that the server itself won't be able to trace your connection back to you. Your anonymity is maintained through the use of Tor, and your conversations are protected by SimpleX's encryption.

We're going to make use of HackLiberty's tutorial on how to install and configure a SimpleX server using Docker.

We're going to be using Docker to run the server, so before you continue, please follow this guide to be sure you have the proper packages installed and permissions granted.

In this guide we're going to be using the official remote images, however if you want to fork and build your own, we have a guide here where you can do so.

We'll be creating and editing some files in this post, you can use your favorite CLI text editor such as vim or nano or your favorite GUI text editor.

First we're going to create a directory where we can do all of our commands and operations, such as:

mkdir -p ~/simplex-server
cd ~/simplex-server

Then we'll make two files, one will be called docker-compose.yml with the following contents:

networks:
  tor-test:
    driver: bridge
    ipam:
      config:
        - subnet: 10.6.0.0/24
          gateway: 10.6.0.1

services:
  simplex-smp-server:
    image: simplexchat/smp-server:latest
    container_name:  simplex-smp
    restart: always
    user: "1000:1000" #user uid - change if necessary
    ports:
      - "127.0.0.1:5223:5223" #this will expose port 5223 to internet
    volumes:
      - ./smp/config:/etc/opt/simplex:Z
      - ./smp/logs:/var/opt/simplex:Z
    environment:
      - ADDR=${SIMPLEX_ADDR}
#     - PASS=${SIMPLEX_PASSWORD} #for non public servers
    networks:
      tor-test:
        ipv4_address: 10.6.0.5
    security_opt:
      - no-new-privileges:true
    cap_drop:
      - ALL

  simplex-xftp-server:
    image: simplexchat/xftp-server:latest
    container_name:  simplex-xftp
    user: "1000:1000" #user uid - change if necessary
    ports:
      - "127.0.0.1:5233:5233" #port mapping to expose xftp to internet on port 5233
    restart: always
    volumes:
      - ./xftp/config:/etc/opt/simplex-xftp:Z
      - ./xftp/logs:/var/opt/simplex-xftp:Z
      - ./xftp/files:/srv/xftp
    environment:
      - ADDR=${XFTP_ADDR}
      - QUOTA=150gb #change to set your own quota
    networks:
      tor-test:
        ipv4_address: 10.6.0.6
    security_opt:
      - no-new-privileges:true
    cap_drop:
      - ALL

  tor:
    image: osminogin/tor-simple
    container_name: tor-simplex
    volumes:
      - ./tor-data:/var/lib/tor
      - ./tor-data/torrc:/etc/tor
    networks:
      tor-test:
        ipv4_address: 10.6.0.4

And another called .env with the following contents (we will replace the ADDRs soon. You can set the password to whatever you like):

SIMPLEX_ADDR="nowhere"
SIMPLEX_PASSWORD="dawiuhwaihyawy4129y89u0u1"
XFTP_ADDR="nowhere"
# no clearnet at all

Then we're going to create the folders with these commands:

mkdir -p {xftp,smp}/{config,logs}
mkdir -p xftp/files
mkdir -p tor-data/torrc
mkdir -p tor-data/{simplex-xftp,simplex-smp}

You can see our final folder structure like so:

→ find . | sort
.
./docker-compose.yml
./.env
./smp
./smp/config
./smp/logs
./tor-data
./tor-data/simplex-smp
./tor-data/simplex-xftp
./tor-data/torrc
./xftp
./xftp/config
./xftp/files
./xftp/logs

Now we need to assign the proper permissions to our new directories with these commands:

chmod 700 tor-data/simplex-{xftp,smp}
sudo chown 100:65533 tor-data/simplex-{xftp,smp}
sudo chown -R 100:65533 tor-data/

Be aware that SimpleX's documentation doesn't recommend by default that the servers be anonymous, they only care about the users being anonymous, that's why they recommend these 3 lines in the torrc configuration:

SOCKSPort 0
HiddenServiceNonAnonymousMode 1
HiddenServiceSingleHopMode 1

DO NOT USE THESE, otherwise your servers' location will be known. Instead, create a file tor-data/torrc/torrc and paste in this text (you'll need sudo permissions to create this file):

SOCKSPort 0.0.0.0:9050
HiddenServiceDir /var/lib/tor/simplex-smp
HiddenServicePort 5223 simplex-smp:5223
HiddenServicePort 443 simplex-smp:5223
HiddenServicePort 80 simplex-smp:80
HiddenServiceDir /var/lib/tor/simplex-xftp
HiddenServicePort 5233 simplex-xftp:5233

Then we're going to run the docker containers so that it creates the tor hostnames for both the smp and xftp services, so that we can use both in the .env file:

docker compose up

We are just starting the Tor stack so we can generate the hostnames, so if you see some errors, it's fine:

simplex-xftp exited with code 1
simplex-xftp  | Incorrect $ADDR environment variable. Please specify the correct one in format: smp1.example.org / example.org

Output the hostnames from the files that the Tor daemon created:

→ sudo cat tor-data/simplex-smp/hostname
b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion

→ sudo cat tor-data/simplex-xftp/hostname
wg54vc6p3dscshywvt2wninachqoarrodtunapds7t7p47sn5e3qonid.onion

Edit the .env file to include these new hostnames.

SIMPLEX_ADDR="b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion"
SIMPLEX_PASSWORD="dawiuhwaihyawy4129y89u0u1"
XFTP_ADDR="wg54vc6p3dscshywvt2wninachqoarrodtunapds7t7p47sn5e3qonid.onion"

Now bring your docker containers down and back up again so they will create the config files we're about to edit:

docker compose down
docker compose up

Again, if you get some errors, you can ignore them for now:

simplex-smp exited with code 1
simplex-xftp exited with code 1
simplex-xftp  | Incorrect $ADDR environment variable. Please specify the correct one in format: smp1.example.org / example.org

Then we edit the smp config correctly as we will NOT use the clearnet at all, namely by commenting out the clearnet config lines.

# This will comment out the appropriate lines
→ sudo sed -i.bak '/^static\_path:/s/^/# /; /^https:/s/^/# /; /^cert:/s/^/# /; /^key:/s/^/# /' smp/config/smp-server.ini

# You can it was successful here:
→ cat smp/config/smp-server.ini | tail -n3
#https: 443
#cert: /etc/opt/simplex/web.crt
#key: /etc/opt/simplex/web.key

Then we also configure it so that the simplex smp server goes through the docker tor daemon to connect to other servers. First for the SMP server, in smp/config/smp-server.ini. You'll need sudo permissions to edit this file. These are the key-values you'll set, they'll all be under the [PROXY] section:

host_mode: onion
required_host_mode: off
socks_proxy: 10.6.0.4:9050
socks_mode: always

So your config file will look something like this:

[PROXY]
# Network configuration for SMP proxy client.
# `host_mode` can be 'public' (default) or 'onion'.
# It defines prefferred hostname for destination servers with multiple hostnames.
host_mode: onion
required_host_mode: off

# The domain suffixes of the relays you operate (space-separated) to count as separate proxy statistics.
own_server_domains: 6wnvwmyfseik3gjnggc6ktyg5zo55xjemsokd44l7xl2pchruu3fcoad.onion

# SOCKS proxy port for forwarding messages to destination servers.
# You may need a separate instance of SOCKS proxy for incoming single-hop requests.
socks_proxy: 10.6.0.4:9050

# `socks_mode` can be 'onion' for SOCKS proxy to be used for .onion destination hosts only (default)
# or 'always' to be used for all destination hosts (can be used if it is an .onion server).
socks_mode: always

# Limit number of threads a client can spawn to process proxy commands in parrallel.
# client_concurrency: 32

And also for the XFTP server in xftp/config/file-server.ini. You'll need sudo permissions to edit this file. There's one potential value to change, the port under [TRANSPORT], which may be set to 443, and if it is, should be set to our port 5233:

[TRANSPORT]
# host is only used to print server address on start
host: kcdeknkchwhsydtg5uvwv54jyxzxygtpzswf7r6k4j2xj4cu6c2rqwid.onion
port: 5233
log_tls_errors: off
# control_port: 5226

Then we simply run the docker containers again:

# The flag -d which will detach the process and run it in the background
# The final command will allow you to see the logs and Ctrl+C to exit them
# Without exiting the daemon process
→ docker compose down && docker compose up -d && docker compose logs -f

Starting simplex-xftp ... done
Starting simplex-smp  ... done
Starting tor-simplex  ... done

# Couple log lines you'll see scattered in the logs, this tells us our server addresses that we'll add to our client later
simplex-smp            | Server address: smp://BD4qkVq8lJUgjHt0kUaxeQBYsKaxDejeecxm6-2vOwI=@b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion:5223
simplex-xftp           | Server address: xftp://emX7ForsbdpIscNiDZ6b0HTbfFUayn00C1wmeVTofYA=@wg54vc6p3dscshywvt2wninachqoarrodtunapds7t7p47sn5e3qonid.onion:5233

Sidenote: One important thing to note though is that you shouldn't be the only one to use your own simplex servers as if you are the only one to use that one simplex server, people may figure out that you're the same person when trying to use different profiles. This is why you should list your simplex servers publicly somewhere, either in your own community like i did here:

Or you can list your simplex servers on public lists like this one:

Optional but recommended: Since you are using docker containers, you can easily automate keeping them updated with a simple cronjob:

[ Wonderland ] [ /dev/pts/4 ] [~]
→ crontab -e

#daily simplex containers update
0 0 * * * docker compose -f /srv/simplex/docker-compose.yml pull ;  docker compose -f /srv/simplex/docker-compose.yml down; docker compose -f /srv/simplex/docker-compose.yml up -d

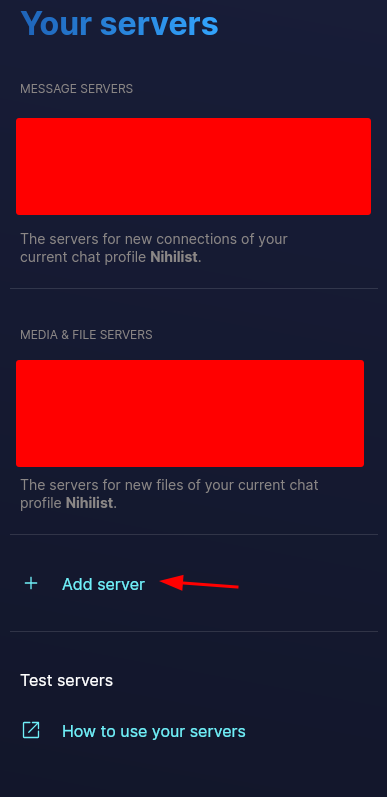

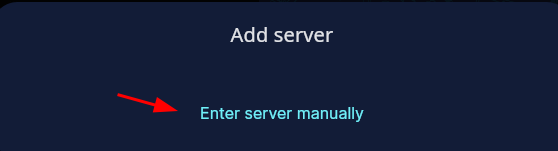

Once that's done, we can go ahead and add the servers in our simplex client:

Configure SimpleX To Use Your Server

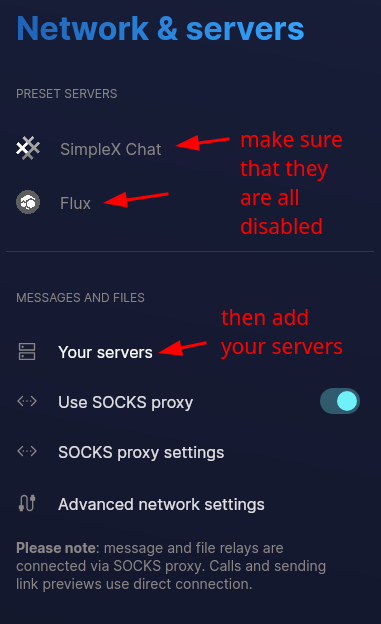

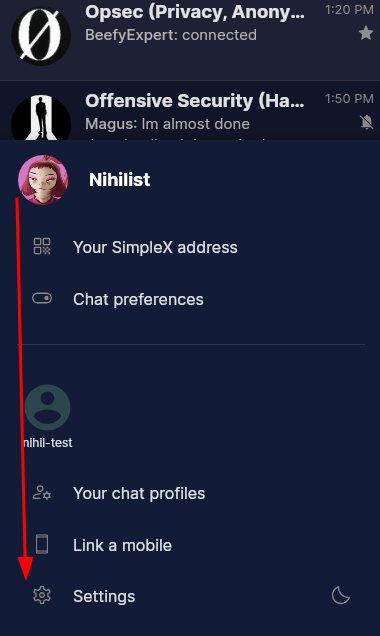

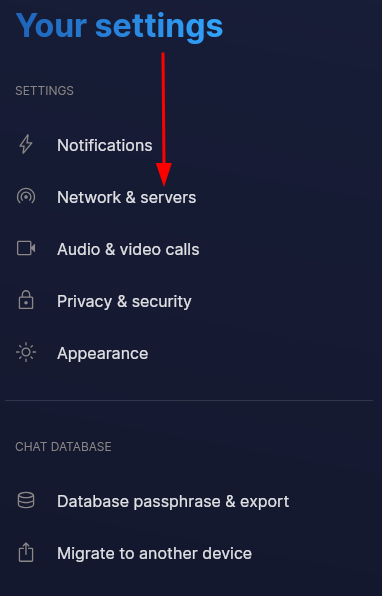

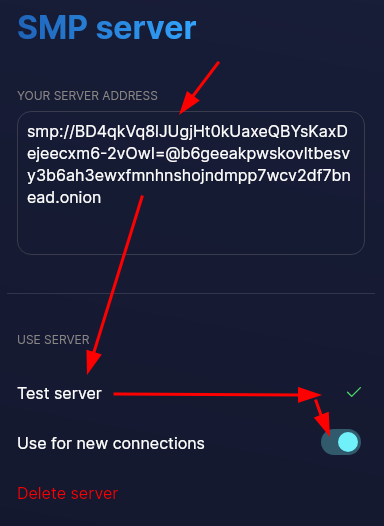

Now from our simplex client we need to make sure that we are using our own simplex servers, which have the following URL that we got from our logs earlier (Quick note, one or both of your server addresses may be trailed with an addition port like ,443, you can delete this part when you input them into your client)"

SMP server:
smp://BD4qkVq8lJUgjHt0kUaxeQBYsKaxDejeecxm6-2vOwI=@b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion:5223

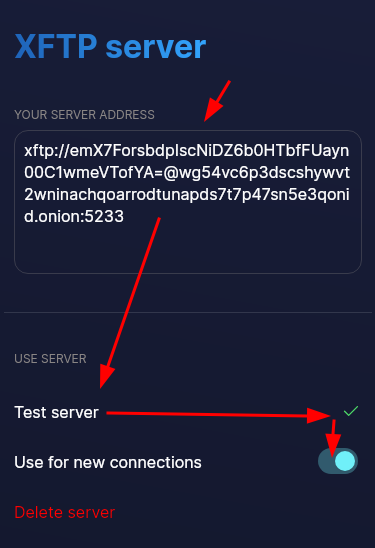

XFTP server:
xftp://emX7ForsbdpIscNiDZ6b0HTbfFUayn00C1wmeVTofYA=@wg54vc6p3dscshywvt2wninachqoarrodtunapds7t7p47sn5e3qonid.onion:5233

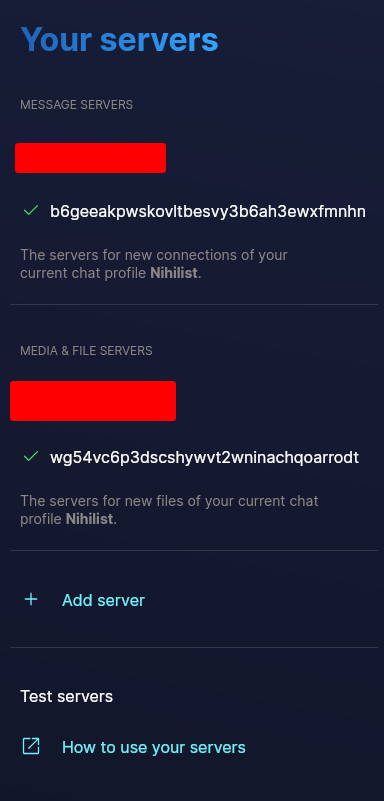

And now that our simplex client is ONLY using our onion-only simplex servers, we can create our own chatrooms:

How to Create Chatrooms in Incognito mode

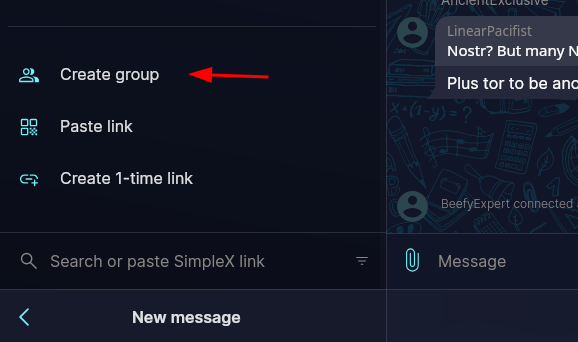

Now that we are using our own simplex servers, we can create a chatrooms in incognito mode (meaning that our username will simply be a random noun and adjective):

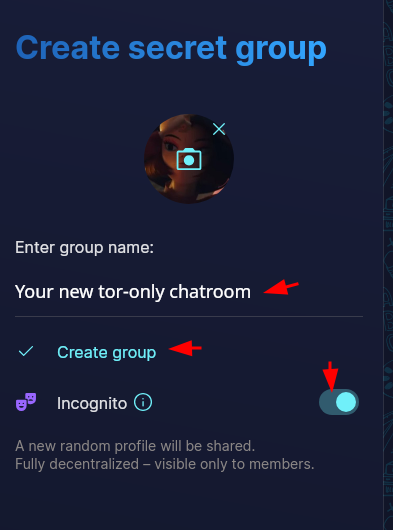

Enter a name for your group. You can also add a photo for the group.

Tick the Incognito option. Doing this ensures your profile name and image is hidden from your group members and allows for anonymous connections with other people without shared data. Once you have filled out the necessary information, press Create group.

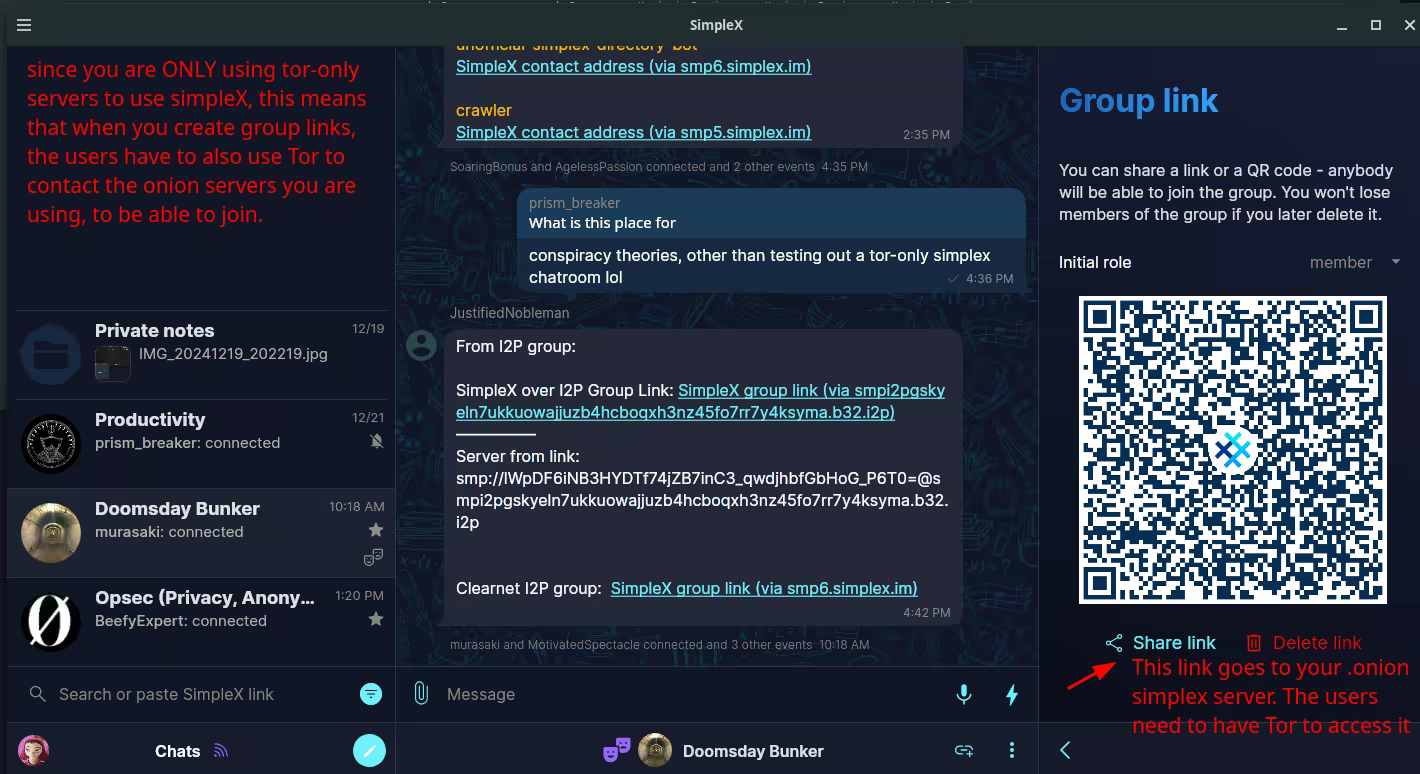

as noted above, since you are only using tor-only simplex servers, this means that you are forcing the users to use Tor to be able to join your invite links. Here's what the invite link looks like:

https://simplex.chat/contact#/?v=2-7&smp;=smp%3A%2F%2FBD4qkVq8lJUgjHt0kUaxeQBYsKaxDejeecxm6-2vOwI%3D%40b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion %2FSMvbQfvtczzC7r6Sv3gEgy_s01_ZYPh_%23%2F%3Fv%3D1-3%26dh%3DMCowBQYDK2VuAyEA9kSAhfaJMzC8YWZzkpoCL8mnBmq2U8VE8_v5HYk0nyE%253D&data;=%7B%22groupLinkId%22%3A%22zjrwnXSNIBJO9ZhoHcRRkQ%3D%3D%22%7D

as you can see the default invite link looks like that, and as you can see the onion server address appears in the link, which is the reason why if the user that wants to join doesn't have tor connectivity, he won't be able to join. If you don't want to use any of simplex's servers, you can simply replace the https://simplex.chat/ at the beginning with your simplex smp server onion url as follows:

http://b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion/contact#/?v=2-7&smp;=smp%3A%2F%2FBD4qkVq8lJUgjHt0kUaxeQBYsKaxDejeecxm6-2vOwI%3D%40b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion%2FSMvbQfvtczzC7r6Sv3gEgy_s01_ZYPh_%23%2F%3Fv%3D1-3%26dh%3DMCowBQYDK2VuAyEA9kSAhfaJMzC8YWZzkpoCL8mnBmq2U8VE8_v5HYk0nyE%253D&data;=%7B%22groupLinkId%22%3A%22zjrwnXSNIBJO9ZhoHcRRkQ%3D%3D%22%7D

If you want to not contact any simplex server to be able to view the invite link, you can simply replace the server address to simplex:/ , which will transform the link as follows:

simplex:/contact#/?v=2-7&smp;=smp%3A%2F%2FBD4qkVq8lJUgjHt0kUaxeQBYsKaxDejeecxm6-2vOwI%3D%40b6geeakpwskovltbesvy3b6ah3ewxfmnhnshojndmpp7wcv2df7bnead.onion%2FSMvbQfvtczzC7r6Sv3gEgy_s01_ZYPh_%23%2F%3Fv%3D1-3%26dh%3DMCowBQYDK2VuAyEA9kSAhfaJMzC8YWZzkpoCL8mnBmq2U8VE8_v5HYk0nyE%253D&data;=%7B%22groupLinkId%22%3A%22zjrwnXSNIBJO9ZhoHcRRkQ%3D%3D%22%7D

Conclusion

By following this tutorial, you've set up a secure, anonymous simplex server on Tor. You've configured a SimpleX server with .onion addresses and create incognito chatrooms. This setup ensures that your private conversations remain secure and untraceable.

What You've Accomplished

  • Configured SimpleX servers to use .onion addresses.
  • Created incognito chatroooms
