Disguising Tor traffic with Cloak

TLDR: you can use cloak to access the Tor network from authoritarian regimes where VPNs are banned.

Tor is a great tool when it comes to bypassing internet restrictions or even being private/anonymous. This has made it very difficult for authoritarian nations to surveil or control their own citizens, so they have resorted to employing DPI infrastructures to sabotage usage of these tools or even catch users trying to use them.

Luckily, Cloak is there to help! It forwards traffic between a port from a server running Cloak to a client, while disguising it as a regular HTTPS connection to throw off DPI detection.

Cloak can be used to forward any port (such as from Tor's bridge port, or a WireGuard proxy), so it's not a full proxy solution and requires an underlying proxy program.

Server Configuration

First of all, we need a VPS to host Cloak and all the other stuff we need to pass through on it. You can buy one from servers.guru or any good VPS provider.

Getting and setting up a VPS is not related to this tutorial, so we won't touch on it here. We'll assume you have one with SSH access already working.

Download the latest release of Cloak server (ck-server) for your VPS's architecture. If you don't know what your VPS's CPU architecture is, you can use uname -a to check it.

root@debian-12:~# uname -a
Linux debian-12 6.1.0-37-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.1.140-1 (2025-05-22) x86_64 GNU/Linux

From this uname -a output, we can tell that our VPS is running x86_64 Linux (or also referred to as amd64). So we'll be downloading ck-server-linux-amd64.

root@debian-12:~# wget https://github.com/cbeuw/Cloak/releases/download/v2.12.0/ck-server-linux-amd64-v2.12.0 -O /usr/local/bin/ck-server
root@debian-12:~# chmod +x /usr/local/bin/ck-server
root@debian-12:~# setcap CAP_NET_BIND_SERVICE=+eip /usr/local/bin/ck-server

Create a new, dedicated user for hosting the Cloak server. This is just for security, as we don't need to run the server as a privileged user.

root@debian-12:~# useradd -M -s /usr/bin/false cloak

Create a directory in /etc for storing the Cloak configuration file.

root@debian-12:~# mkdir /etc/cloak

Create a systemd service file for the Cloak server.

root@debian-12:~# touch /etc/systemd/system/cloak-server.service
root@debian-12:~# chmod 664 /etc/systemd/system/cloak-server.service
root@debian-12:~# vim /etc/systemd/system/cloak-server.service

[Unit]
Description=Cloak server
After=network.target

[Service]
ExecStart=/usr/local/bin/ck-server -c /etc/cloak/server.json
User=cloak
Group=cloak

[Install]
WantedBy=multi-user.target

We can generate a private key by running ck-server -key. The public key should be given to the client.

root@debian-12:~# ck-server -key
Your PUBLIC key is:                      STzQhDyU5HzL8cbE9GyRnZSgoUWrcKbnTxu/QJ7TGDs=
Your PRIVATE key is (keep it secret):    8EXZs+aN24lo4ccRaU/N28ua0jQUKmdNCVfBQ1ynuU8=

We can also generate a UID for the client by running ck-server -uid

root@debian-12:~# ck-server -uid
Your UID is: e1leL4TP/cy3TEoWpXzA/A==

Now, we can configure the Cloak server by editing /etc/cloak/server.json (replace the UID in BypassUID and the private key in PrivateKey with your own output)

root@debian-12:~# vim /etc/cloak/server.json

{
    "ProxyBook": {
        "tor": [
            "tcp",
            "127.0.0.1:9001"
        ],
        "wireguard": [
            "udp",
            "127.0.0.1:51820"
        ]
    },
    "BindAddr": [
        ":443",
        ":80"
    ],
    "BypassUID": [
        "e1leL4TP/cy3TEoWpXzA/A=="
    ],
    "RedirAddr": "cloudflare.com",
    "PrivateKey": "8EXZs+aN24lo4ccRaU/N28ua0jQUKmdNCVfBQ1ynuU8="
}

WireGuard is included here to demonstrate how it would be possible to forward more than one proxy port in Cloak, but we are not going to be showcasing it in this post.

After all this, we can now start the Cloak server.

root@debian-12:~# systemctl enable --now cloak-server.service

Client Configuration

Download the Cloak client binary for your client's CPU architecture

root@client:~# wget https://github.com/cbeuw/Cloak/releases/download/v2.12.0/ck-client-linux-amd64-v2.12.0 -O /usr/local/bin/ck-client
root@client:~# chmod +x /usr/local/bin/ck-client

Create a new user for the Cloak client, just like in the server, and make a directory for the Cloak client configuration too.

root@client:~# useradd -M -s /usr/bin/false cloak
root@client:~# mkdir /etc/cloak

Create a systemd service file for the Cloak client. Set the <server_ip> in the service file to your VPS' IP

root@client:~# touch /etc/systemd/system/cloak-client.service
root@client:~# chmod 664 /etc/systemd/system/cloak-client.service
root@client:~# vim /etc/systemd/system/cloak-client.service

[Unit]
Description=Cloak client
After=network.target

[Service]
ExecStart=/usr/local/bin/ck-client -c /etc/cloak/client.json -s <server_ip>
User=cloak
Group=cloak

[Install]
WantedBy=multi-user.target

Configure the Cloak client with the server's public key and the client UID we generated before when we set the server up.

root@client:~# vim /etc/cloak/client.json

{
    "UID": "e1leL4TP/cy3TEoWpXzA/A==",
    "ServerName": "cloudflare.com",
    "PublicKey": "STzQhDyU5HzL8cbE9GyRnZSgoUWrcKbnTxu/QJ7TGDs=",
    "EncryptionMethod": "chacha20-poly1305",
    "BrowserSig": "chrome",
    "ProxyMethod": "<set_proxy_name>"
}

Note that ProxyMethod is required to be set to one of the entries in the server's ProxyBook. The setting determines what port Cloak will forward over. Cloak can only forward one port at a time.

Enable and activate the Cloak client after all this.

root@client:~# systemctl enable --now cloak-client.service

Tor

We're gonna host a Tor bridge relay in the server, that will be forwarded through Cloak and used by the client.

Server

Install Tor on the VPS.

root@debian-12:~# apt install tor obfs4proxy

Configure Tor to host a private bridge.

root@debian-12:~# vim /etc/tor/torrc

SocksPort 0 # Optional, This will disable Tor's SOCKS port
BridgeRelay 1
PublishServerDescriptor 0
ORPort 127.0.0.1:9001

Restart Tor (if you already have it started and enabled)

root@debian-12:~# systemctl restart tor

Since we've already listed the port in our server.json (ProxyBook), the bridge port will already be available to clients.

Client

Set the ProxyMethod in /etc/cloak/client.json to tor. This will configure Cloak to forward over the Tor bridge port

root@client:~# vim /etc/cloak/client.json

    "ProxyMethod": "tor"

Restart the Cloak client

root@client:~# systemctl restart cloak-client.service

Open up the Tor Browser, you may see this page when it hasn't connected yet.

Click on Configure Connection...

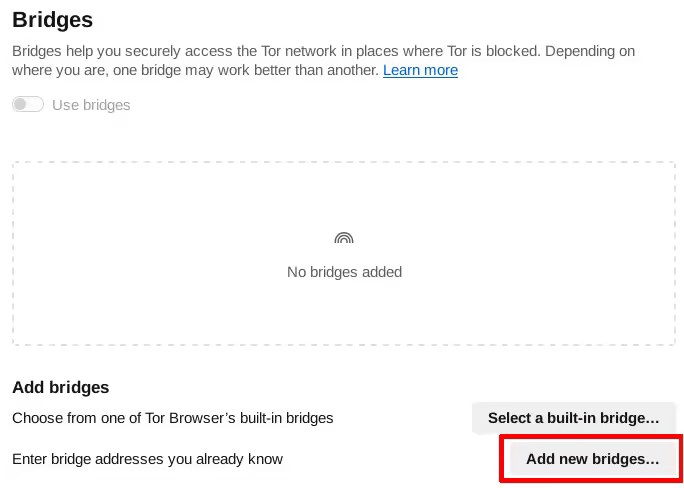

Scroll down until you see the Bridges section, and click on Add new bridges...

Since Cloak listens on port 1984 locally by default, type 127.0.0.1:1984 in the bridge addresses and click Next

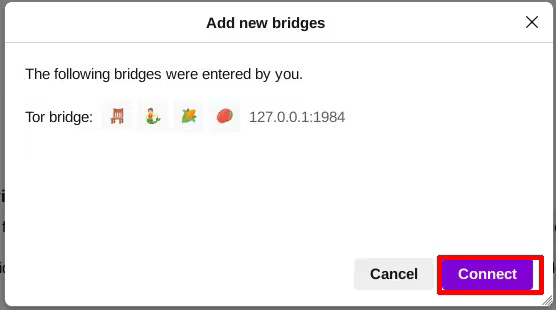

Click Connect

If the Tor Browser managed to connect, congrats! You've managed to bypass DPI blocks using Cloak.
