Internet Usage Segmentation Setup

TLDR:
- Windows VM for public use,
- Kicksecure VM for private use,
- Whonix VM for anonymous use,
- Whonix VM in a veracrypt hidden volume for sensitive use.
- Public / Private / Anonymous profiles separation on your grapheneOS phone, with duress password for sensitive use

In this tutorial we're going to cover how to properly segment your internet usage. This is the most common opsec practice that you should always use. We're going to base ourselves off from the pyramid of internet use that we have seen previously, to be able to replicate each of the 4 OPSEC levels into our current setup:

Additionally, remember that our recommendations are EXCLUSIVELY for personal devices. Do not use work devices from your employment for personal uses, and vice versa. Personal devices = Level 0-3 OpSec levels. Work devices = Level 0 public use and nothing else.

Different Internet Usage

The most common OPSEC mistake out there is the lack of internet usage segmentation. Most people don't have this reflex when they first discover Anonymity and Privacy online. Thing is, it is not possible to be fully anonymous for everything that you do online , there will always be some service that is vital to you, which you will need to access with your real world identity (for example, to access your bank account, or some insurance website, etc). However it is definitely possible to implement proper internet usage segmentation:

In this case we're going to differentiate 4 types of Internet usage:

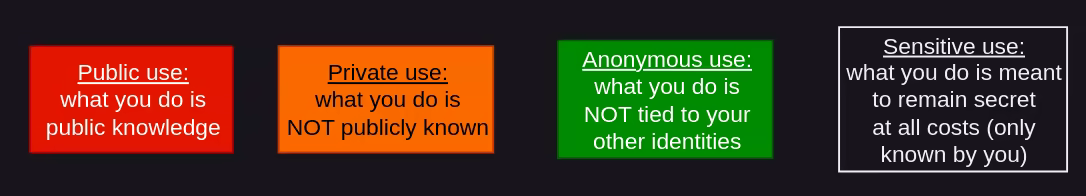

Internet Uses:

  1. Public use : What you do is public knowledge

  2. Private use : What you do is NOT publicly known

  3. Anonymous use : What you do is meant to be done without revealing your identity

  4. Sensitive use : What you do is meant to remain secret at all cost, only to be known by you

With each different Internet usage, we have different requirements:

Requirements:

  1. Public use : No requirement ; you can use closed source software (meaning it's all public), using your IRL identity

  2. Private use : only open source software, + you use a pseudonym instead of your IRL identity

  3. Anonymous use : open source, using a random, meaningless identity not sensitive

  4. Sensitive use : open source, using an other random meaningless identity, AND if the adversary seizes the device, they musn't be able to prove the existance of the Sensitive VM

Now with this we identified the 4 most typical internet use cases, and their requirements.

Identity Management

As we said previously, segmentation is required for each internet use. This extends to the Identity you use online. For example you cannot use your real name when trying to use the internet anonymously. So you need a different identity for each use case:

Different Identities:

  1. Public Identity : Linus Torvalds (used on websites that ask for your identity)

  2. Private Identity : Nihilist (used on websites that may KYC, but pseudonym is preferred)

  3. Anonymous Identity : ZacharyJr (used on anonymous websites, non-sensitive use)

  4. Sensitive Identity : Dread Pirate Roberts (used on anonymous websites, sensitive use)

The important thing here is that you must make sure that each identity have nothing in common, it must always remain impossible for and adversary to be able to link those identities together.

Multiple Virtual Machines (VMs)

To help you implement your internet usage segmentation, you can use VMs to make sure the segmentation is present inside the system:

Virtual Machines:

  1. Public use : No requirement ; you can use a windows VM for all closed source software and KYC use

  2. Private use : you can use a Debian VM, with only open source software (ex: SimpleX chat)

  3. Anonymous use : you can use Whonix VMs (it forces every connection to go through Tor)

  4. Sensitive use : You can use Whonix VMs, but they need to be inside a Veracrypt hidden volume

Sidenote: QubesOS is based off the same segmentation principle, that every use must remain isolated (or compartmentalized) into VMs, for specific uses. It also uses Linux and Whonix VMs, while using the Xen hypervisor instead of libvirtd QEMU/KVM, but the concept remains the same.

Multiple GrapheneOS Profiles

You can also accomplish segmentation on your GrapheneOS device by the use of User Profiles.

Graphene OS Profiles:

  1. Public profile : No requirement ; you can use this all closed source software and KYC use for your Public Identity

  2. Private profile : you can use with only open source software (ex: SimpleX chat) and be sure you're at least using a VPN.

  3. Anonymous profile : you can only use FOSS software and route everything through Tor (using InviZible Pro or Orbot)

  4. Sensitive usage : As Graphene does not have Hidden Profile or something akin to a Veracrypt Hidden Volume. Sensitive Use activities are limited to having SimpleX Chat with a hidden chat profile, as well as the use of the GrapheneOS Duress Password/PIN.

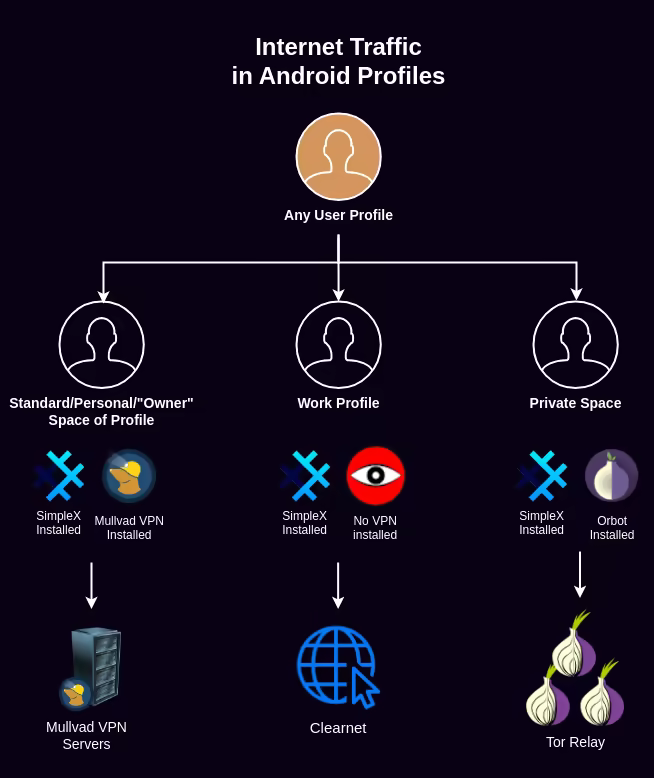

Something very important to remember, since we are talking about internet usage, is that firstly, when you install a VPN one user profile, this VPN does NOT carry over to another user profile

However, this is also true for Work Profiles and Private Spaces, which live inside of User Profiles. So for example, if you install Mullvad VPN inside of the standard space (sometimes called "Personal" or "Owner" profile) of the user profile, and then you browse the web with Firefox that is installed on the Work Profile or in the Private Space, those connections will NOT route through the Mullvad VPN, because they have their own dedicated VPN slots.

Internet Usage Segmentation Recap

Now with this setup, one can segment their Internet use with a system implementation (VMs) along with the associated Identities for each usecase.

And the same with Graphene OS profiles:

For further details on how to dissect your OPSEC, check out this tutorial here, because using the right technologies is only the first half of the work, you also need to have the correct behavior while using them.
